電纜橋架系統作為現代建筑電氣布線的重要基礎設施，根據結構特點和功能需求可分為多種類型，每種類型都具有獨特的性能優勢和應用場景。以下是對各類電纜橋架的詳細技術分析：

As an important infrastructure for modern building electrical wiring, cable tray systems can be divided into multiple types based on their structural characteristics and functional requirements, each with unique performance advantages and application scenarios. The following is a detailed technical analysis of various cable trays:

一、梯式電纜橋架技術解析

1、 Analysis of Ladder Cable Tray Technology

梯式電纜橋架采用優良冷軋鋼板經數控加工成型，由兩側縱向邊梁與等間距排列的橫檔通過高強度螺栓連接構成梯形開放式結構。其結構設計具有三大顯著優勢：首先，獨特的鏤空結構使單位長度重量較實心橋架減輕約35%，材料成本降低25%以上；其次，開放式設計形成自然對流通道，散熱效率比封閉式結構提升40%，可有效降低電纜工作溫度；第三，梯形截面使其抗彎截面模量提高30%，單跨非常大承載能力達300kg/m，非常適合8-12米大跨度安裝場合?；谶@些特性，梯式橋架成為高壓電力電纜（35kV及以上）、大截面母線（4000A以上）等重型電纜敷設的優選方案，在變電站、發電廠等電力設施中應用廣泛。

The ladder type cable tray is made of high-quality cold-rolled steel plates processed by CNC machining, and is composed of two longitudinal side beams and equally spaced crossbars connected by high-strength bolts to form a trapezoidal open structure. Its structural design has three significant advantages: firstly, the unique hollow structure reduces the weight per unit length by about 35% compared to solid cable trays, and reduces material costs by more than 25%; Secondly, the open design forms a natural convection channel, which increases the heat dissipation efficiency by 40% compared to the closed structure, effectively reducing the working temperature of the cable; Thirdly, the trapezoidal cross-section increases its flexural modulus by 30%, with a maximum single span bearing capacity of 300kg/m, making it particularly suitable for installation in large spans of 8-12 meters. Based on these characteristics, ladder style cable trays have become the preferred solution for laying heavy-duty cables such as high-voltage power cables (35kV and above) and large section busbars (4000A and above), and are widely used in power facilities such as substations and power plants.

二、托盤式電纜橋架系統分析

2、 Analysis of tray type cable tray system

托盤式電纜橋架由底部沖孔托盤和兩側折彎擋邊組成相結合結構，采用連續輥壓成型工藝制造。其技術特點體現在：1）底部波紋加強設計使承載力達到200kg/m，可同時敷設多根電力電纜；2）標準化連接件實現快速插接安裝，工效比傳統焊接方式提高3倍；3）表面環氧樹脂粉末噴涂處理，既美觀又耐腐蝕。這種橋架非常適合石化裝置區的防爆電纜敷設、商業綜合體的照明配電系統以及智能建筑的強弱電混合布線，是目前使用量非常大的橋架類型，約占市場總量的45%。

The tray type cable tray is an integrated structure consisting of a bottom punched tray and two side bent edges, manufactured using continuous roll forming technology. Its technical features are reflected in: 1) The bottom corrugated reinforcement design enables a bearing capacity of 200kg/m and can simultaneously lay multiple power cables; 2) Standardized connectors enable quick insertion and installation, increasing efficiency by three times compared to traditional welding methods; 3) The surface is treated with epoxy resin powder spraying, which is both aesthetically pleasing and corrosion-resistant. This type of cable tray is particularly suitable for explosion-proof cable laying in petrochemical plant areas, lighting distribution systems in commercial complexes, and mixed strong and weak electrical wiring in smart buildings. It is currently the most widely used type of cable tray, accounting for about 45% of the total market share.

三、槽式電纜橋架防護性能詳解

3、 Detailed explanation of protective performance of trough cable tray

槽式電纜橋架采用全封閉箱體結構，通常由2mm厚鋼板折彎成型并配可拆卸蓋板。其防護性能突出表現在：1）IP54防護等級可完全防止直徑大于1mm的固體異物進入和任意方向的噴水；2）電磁屏蔽效能達到30dB（1GHz時），能有效抑制射頻干擾；3）內部可加裝防火隔板，滿足電纜防火分隔要求。這些特性使其成為數據中心（傳輸速率≥10Gbps）、自動化生產線（控制信號≤24V）等敏感電子系統線纜敷設的理想選擇，在弱電工程中的應用占比達60%以上。

The trough type cable tray adopts a fully enclosed box structure, usually formed by bending 2mm thick steel plates and equipped with detachable cover plates. Its outstanding protective performance is manifested in: 1) The IP54 protection level can completely prevent solid foreign objects with a diameter greater than 1mm from entering and spraying water in any direction; 2) The electromagnetic shielding effectiveness reaches 30dB (at 1GHz), which can effectively suppress radio frequency interference; 3) Fireproof partitions can be installed internally to meet the requirements of cable fire separation. These characteristics make it an ideal choice for cable laying in sensitive electronic systems such as data centers (transmission rate ≥ 10Gbps) and automated production lines (control signal ≤ 24V), with applications in weak current engineering accounting for over 60%.

四、大跨距電纜橋架工程優勢

4、 Advantages of large-span cable tray engineering

大跨距電纜橋架（跨距≥6m）采用加強型結構設計，主要技術突破包括：1）采用高強度鋁合金（6063-T6）或鍍鋅鋼板（≥3mm）制作主體結構；2）創新性開發預應力張拉技術，使撓度控制在L/200以內；3）標準化快裝接頭實現無焊接安裝。實際工程應用表明，該產品可使管線綜合空間節省30%，安裝效率提高50%，非常適合大型廠房（如汽車制造車間）、交通樞紐（機場航站樓）等大空間場所的電纜敷設，使用壽命可達20年以上。

The large-span cable tray (span ≥ 6m) adopts a reinforced structural design, and the main technological breakthroughs include: 1) using high-strength aluminum alloy (6063-T6) or galvanized steel plate (≥ 3mm) to make the main structure; 2) Innovatively developing prestressed tensioning technology to control deflection within L/200; 3) Standardized quick installation joints enable welding free installation. Practical engineering applications have shown that this product can save 30% of the overall pipeline space and increase installation efficiency by 50%. It is particularly suitable for cable laying in large spaces such as automobile manufacturing workshops and transportation hubs (airport terminals), with a service life of over 20 years.

五、組合式電纜橋架系統特點

5、 Characteristics of Combined Cable Tray System

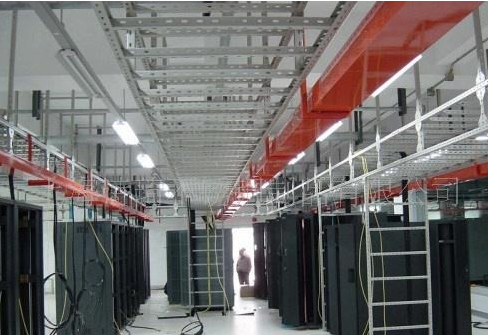

組合式電纜橋架采用模塊化設計理念，由標準直段（2m/3m）、水平彎通、垂直彎通、三通、四通等部件通過專用連接件組合而成。其技術優勢主要體現在：1）支持三維空間任意走向布置，轉彎半徑可準確控制；2）可靈活配置梯級、托盤、槽式等不同結構單元；3）支持后期便捷擴容改造。這種"樂高式"的安裝方式非常適合數據中心機房（布線密度≥40線纜/米）、5G通信基站等復雜布線環境，能夠巧妙解決傳統橋架在空間適應性方面的不足。

The modular design concept is adopted for the combination cable tray, which is composed of standard straight sections (2m/3m), horizontal bends, vertical bends, tees, crosses and other components combined through dedicated connectors. Its technological advantages are mainly reflected in: 1) supporting arbitrary layout in three-dimensional space, and precise control of turning radius; 2) Flexible configuration of different structural units such as steps, trays, and slots; 3) Support convenient expansion and renovation in the later stage. This "LEGO style" installation method is particularly suitable for complex cabling environments such as data center rooms (cabling density ≥ 40 cables/meter) and 5G communication base stations, and can perfectly solve the shortcomings of traditional cable trays in terms of spatial adaptability.

各類電纜橋架的技術經濟比較表明，在實際工程選型中應綜合考慮電纜類型、環境條件、空間限制和預算因素?，F(xiàn)代工程實踐趨向于采用混合配置方案，如主干線路采用梯式橋架保證承重，分支線路使用托盤式橋架便于檢修，敏感信號線路則選用槽式橋架確保屏蔽，通過科學的組合實現非常優的電纜管理系統解決方案。隨著BIM技術的普及，電纜橋架系統正朝著預制化、智能化方向發展，其與建筑結構的集成度將進一步提高。

The technical and economic comparison of various cable trays indicates that in practical engineering selection, cable types, environmental conditions, space limitations, and budget factors should be comprehensively considered. Modern engineering practice tends to adopt a mixed configuration scheme, such as using ladder style cable trays to ensure load-bearing capacity for main lines, tray style cable trays for branch lines for easy maintenance, and slot style cable trays for sensitive signal lines to ensure shielding. The optimal cable management system solution is achieved through scientific combination. With the popularization of BIM technology, cable tray systems are developing towards prefabrication and intelligence, and their integration with building structures will be further improved.
