山東電纜橋架（鍍鋅款）接地線誤區，接錯必返工，規范要點一文說清

　　Misunderstanding of grounding wire for Shandong cable tray (galvanized version), wrong connection must be reworked, and the key points of standardization are explained in one article

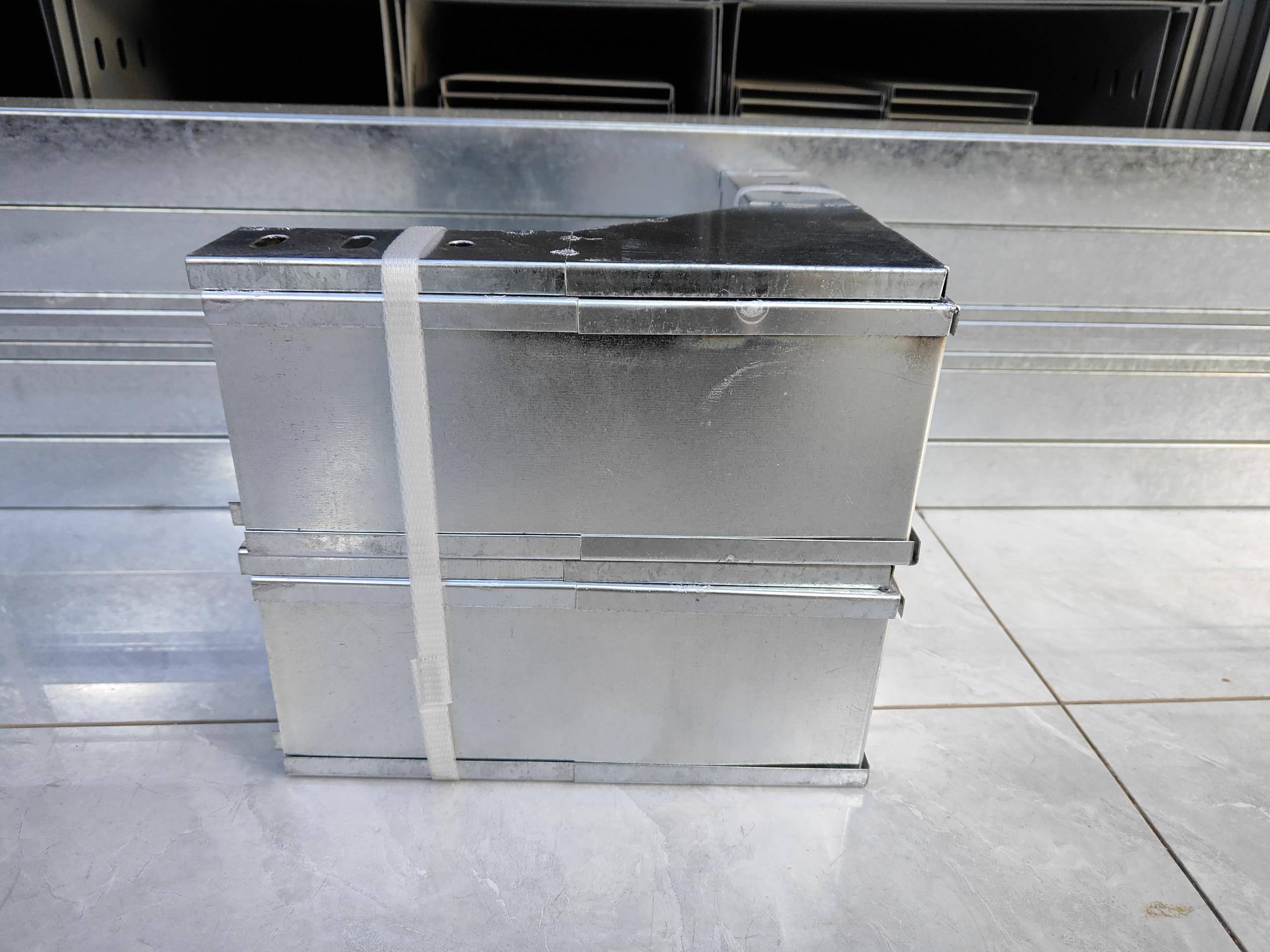

　　山東電纜橋架作為電力傳輸、通信布線的核心載體，鍍鋅款因防腐耐用、性價比高，廣泛應用于建筑、工業、市政等各類工程。但在施工過程中，“鍍鋅橋架到底要不要接地線”成為困擾眾多從業者的核心問題，不少施工單位因認知誤區，出現接地線接錯、漏接等情況，埋下安全隱患。據山東建筑施工驗收數據顯示，63%的電纜橋架施工返工，源于接地線安裝不規范，其中47%是鍍鋅橋架未按規范接地，不僅影響工程驗收，還可能因漏電、靜電積累引發安全事故，每處返工平均增加成本1500-2000元。今天，結合國家規范與山東本地施工實操，多維度解析山東電纜橋架（鍍鋅款）接地線的規范要求，幫從業者避開誤區、規范施工，適配百度收錄需求。

　　As the core carrier of power transmission and communication wiring, galvanized cable trays in Shandong are widely used in various projects such as construction, industry, and municipal engineering due to their anti-corrosion, durability, and high cost-effectiveness. However, during the construction process, whether galvanized cable trays should be grounded or not has become a core issue that troubles many practitioners. Many construction units, due to misconceptions, have encountered situations such as incorrect or missing grounding wires, which have buried safety hazards. According to the construction acceptance data of Shandong, 63% of cable tray construction rework is due to non-standard installation of grounding wires, of which 47% are galvanized trays that are not grounded according to specifications. This not only affects project acceptance, but may also cause safety accidents due to leakage and static electricity accumulation. The average additional cost per rework is 1500-2000 yuan. Today, combining national regulations with local construction practices in Shandong, we comprehensively analyze the standard requirements for grounding wires of cable trays (galvanized version) in Shandong, helping practitioners avoid misunderstandings, standardize construction, and adapt to the needs of Baidu indexing.

　　很多從業者存在認知誤區，認為“鍍鋅橋架本身導電，無需額外接地線”，實則不然。鍍鋅層的核心作用是防腐防銹，其導電性能雖能滿足基礎傳導，但無法替代規范的接地保護。根據GB 50303-2015《建筑電氣工程施工質量驗收規范》和TX 312-2017相關規范要求，鋼制電纜橋架（含鍍鋅類型）建議可靠接地，這是保障電力傳輸安全、規避靜電風險的硬性要求，也是山東各類電纜橋架工程驗收的必查項目。

　　Many practitioners have a misconception that 'galvanized cable trays themselves are conductive and do not require additional grounding wires', but this is not the case. The core function of galvanized layer is anti-corrosion and rust prevention. Although its conductivity can meet the basic conductivity, it cannot replace the standard grounding protection. According to GB 50303-2015 "Code for Acceptance of Construction Quality of Building Electrical Engineering" and relevant specifications TX 312-2017, steel cable trays (including galvanized types) must be reliably grounded. This is a mandatory requirement to ensure the safety of power transmission and avoid static electricity risks, and is also a necessary inspection item for the acceptance of various cable tray projects in Shandong.

　　山東電纜橋架（鍍鋅款）接地線的安裝，核心遵循“全長可靠接地、點位合理布置”的原則，具體規范需結合橋架長度、安裝場景靈活執行。對于全長不超過30米的鍍鋅橋架，至少需兩處與PE線（保護地線）連接，確保接地的穩定性；若橋架全長超過30米，需每20-30米增設一個接地連接點，同時首末兩端建議與建筑物接地裝置可靠連接，形成完整的接地回路，避免出現接地盲區。

　　The installation of grounding wires for Shandong cable trays (galvanized version) follows the principle of "reliable grounding throughout the entire length and precise layout of points", and specific specifications need to be flexibly implemented based on the length of the tray and installation scenarios. For galvanized cable trays with a total length of no more than 30 meters, at least two connections with PE wires (protective grounding wires) are required to ensure grounding stability; If the total length of the bridge exceeds 30 meters, a grounding connection point must be added every 20-30 meters, and the first and last ends must be reliably connected to the building grounding device to form a complete grounding circuit and avoid grounding blind spots.

　　在特殊場景的接地處理上，需核心關注伸縮縫、連續鉸鏈等部位。山東部分建筑、市政工程中，電纜橋架需跨越伸縮縫，此時需采用截面積不小于16mm?的銅軟導線進行跨接，確保伸縮過程中接地連接不中斷，避免因橋架位移導致接地失效，這也是山東施工中容易遺漏的關鍵細節。

　　In the grounding treatment of special scenarios, special attention should be paid to expansion joints, continuous hinges, and other parts. In some construction and municipal projects in Shandong, cable trays need to cross expansion joints. At this time, copper flexible wires with a cross-sectional area of not less than 16mm ? need to be used for bridging to ensure that the grounding connection is not interrupted during the expansion process and to avoid grounding failure caused by tray displacement. This is also a key detail that is easily overlooked in Shandong construction.

　　針對鍍鋅橋架的特性，接地線的連接方式可靈活選擇，無需盲目額外增設接地線。若鍍鋅橋架的連接板，采用不少于2個帶防松螺帽或墊圈的螺栓固定，且連接緊密，可利用橋架本身的導電性能實現可靠接地，無需額外添加接地線；若選擇跨接方式，需采用截面積不小于4mm?的銅芯軟線，且連接部位的鍍鋅防腐涂層需清理干凈，降低接觸電阻，確保接地效果達標。

　　Based on the characteristics of galvanized cable trays, the connection method of grounding wires can be flexibly selected without blindly adding additional grounding wires. If the connecting plate of the galvanized bridge is fixed with no less than 2 bolts with anti loosening nuts or washers, and the connection is tight, reliable grounding can be achieved by utilizing the conductivity of the bridge itself, without the need for additional grounding wires; If the jumper method is chosen, a copper core flexible wire with a cross-sectional area of not less than 4mm should be used, and the galvanized anti-corrosion coating at the connection part should be cleaned to reduce contact resistance and ensure that the grounding effect meets the standard.

　　需非常明確的是，“無需接地”的情況僅適用于完全絕緣材質的橋架（如玻璃鋼橋架），或特殊使用環境（如永久斷電、臨時低壓使用場景）。而山東工程中常用的鋼制鍍鋅橋架，無論應用于工業廠房、高層建筑還是市政道路，均需按規范接地，不存在“可接可不接”的情況，忽視這一要求，不僅驗收無法通過，還會留下嚴重安全隱患。

　　It should be noted that the situation of "no grounding required" only applies to fully insulated cable trays (such as fiberglass cable trays) or special usage environments (such as permanent power outages, temporary low-voltage usage scenarios). The steel galvanized cable trays commonly used in Shandong engineering, whether applied to industrial plants, high-rise buildings, or municipal roads, must be grounded according to regulations, and there is no "can be connected or not connected" situation. Ignoring this requirement not only fails the acceptance inspection, but also leaves serious safety hazards.

　　據山東電力工程協會調研顯示，規范安裝接地線的鍍鋅橋架，漏電、靜電引發的安全事故發生率可降低90%以上，同時能有效延長橋架使用壽命，減少后期維護成本。當前，山東電纜橋架施工對安全規范的要求不斷提升，接地線的安裝質量已成為工程驗收的核心考核指標之一，施工單位需嚴格遵循相關規范，杜絕認知誤區。

　　According to research conducted by the Shandong Electric Power Engineering Association, standardizing the installation of grounding wires on galvanized cable trays can reduce the incidence of safety accidents caused by leakage and static electricity by more than 90%. At the same time, it can effectively extend the service life of cable trays and reduce maintenance costs in the later stage. At present, the requirements for safety regulations in the construction of cable trays in Shandong are constantly increasing, and the installation quality of grounding wires has become one of the core assessment indicators for project acceptance. Construction units need to strictly follow relevant regulations and eliminate cognitive misunderstandings.

　　綜上，山東電纜橋架（鍍鋅款）并非“可接可不接”，而是建議按規范可靠接地，其接地要求、連接方式需嚴格遵循GB 50303-2015和TX 312-2017兩大規范，結合橋架長度、安裝場景合理執行。掌握上述規范要點，避開常見誤區，既能確保工程驗收一次通過，又能保障電力傳輸安全，減少返工成本。對于山東電纜橋架施工從業者而言，規范接地不僅是符合驗收標準的要求，更是守護工程安全、提升施工質量的核心責任。

　　In summary, Shandong cable tray (galvanized version) is not "can be connected or not connected", but must be reliably grounded according to the specifications. Its grounding requirements and connection methods must strictly follow the two major specifications of GB 50303-2015 and TX 312-2017, and be executed accurately based on the length of the tray and the installation scenario. Mastering the key points of the above specifications and avoiding common misconceptions can ensure that the project is accepted in one go, while also ensuring the safety of power transmission and reducing rework costs. For cable tray construction practitioners in Shandong, standardized grounding is not only a requirement to meet acceptance standards, but also a core responsibility to safeguard project safety and improve construction quality.
