1、 Unique insulation structure

　　1.采用優良?xì)怏w絕緣材料，提高整體絕緣和超重母線槽容量。

　　1. Adopt high-quality gas insulation materials to improve the overall insulation and overweight bus duct capacity.

　　2.采用特殊的生產高性能耐熱防火安全絕緣支持框架,綜合絕緣支撐架裝飾切斷之間的連接總線和罩殼,這保證了系統軟件加載或火災時效率高、節能隔熱能力,提高整體的沖擊韌性。

　　2. The special production high-performance heat-resistant and fire-resistant safety insulation support frame is adopted, and the connection bus and cover between the decoration and cutting of the integrated insulation support frame are integrated, which ensures the high efficiency of system software loading or fire aging, energy-saving and heat insulation ability, and improves the overall impact toughness.

　　二、總體結構性能高

　　2、 High overall structural performance

　　1.所有的匯流排由一個綜合的絕緣支撐架垂直放置和夾緊。Q235碳鋼高強度裝飾條與擋板連接形成自身本體，保證了整個系統軟件的高強度性能。

　　1. All busbars are vertically placed and clamped by an integrated insulating support frame. Q235 carbon steel high-strength decorative strip and baffle are connected to form its own body, which ensures the high-strength performance of the whole system software.

　　2.外螺紋花在絕緣支撐架和中間緊地腳螺栓是相互匹配、相互加強,這樣沒有人能阻止公車滑落時垂直安裝,從而實現高強度性能的總體結構設計理念。

　　2. The external thread is matched and strengthened with the insulating support frame and the intermediate anchor bolt, so that no one can prevent the vertical installation when the bus falls, so as to realize the overall structural design concept of high-strength performance.

　　三、優良熱管散熱結構

　　3、 High quality heat pipe cooling structure

　　空氣的母線槽系統軟件熱管冷卻方法大多是“熱對流和輻射來源”的熱管冷卻方法,根據熱管冷卻方法的熱導率是緩慢的,因此,電氣設備外殼設計采用波狀紋理,收集波粒鋁覆蓋多維度的設計構思,合理改善了熱管散熱效率。

　　The cooling method of air bus duct system software heat pipe is mostly the heat pipe cooling method of "heat convection and radiation source". According to the heat pipe cooling method, the thermal conductivity is slow. Therefore, the design of electrical equipment shell adopts wave texture, collecting wave grain aluminum to cover the overall design structure, and reasonably improves the heat pipe cooling efficiency.

　　四、優良防水等級

　　4、 High quality waterproof grade

　　因?yàn)槭褂靡粋€(gè)獨特的“業務外包”接近每一個其他類型的后蓋結構,沒有固定地腳螺栓在后蓋的表面,不僅漂亮和優雅干凈,并避免霧入水中,進一步提高公共汽車頻道防水級別,IP65等級。

　　Because a unique "business outsourcing" approach to every other type of back cover structure, there is no fixed anchor bolt on the surface of the back cover, which is not only beautiful and elegant and clean, but also avoids fog entering the water, further improving the waterproof level of bus channel, IP65 level.

　　五、非凡預防“煙囪效應、風管效應”封頂

　　5、 Special prevention "chimney effect, air duct effect" capping

　　的耐熱的母線槽是改裝插頭每個母線管道泄漏的頂部,以便所有系統軟件可以根據的熱管散熱,防止加熱的“煙囪效應”母線槽系統軟件安裝時垂直和水平安裝時加熱管效應。

　　The heat-resistant bus duct is the top of the leakage of each bus duct of the retrofit plug, so that all system software can dissipate heat according to the heat pipe, and prevent the heating pipe effect when the heating "chimney effect" bus duct system software is installed vertically and horizontally.

　　六、高電導率的導體設備

　　6、 Conductor equipment with high conductivity

　　電導體采用優良T2電工接地銅棒，銅水含量大于99.9%，接地銅棒電導體表面鍍鉛鋅或鍍金，不僅降低了接觸電阻，還提高了母線電纜的負荷流量。

　　High quality T2 international electrical grounding copper bar is used as the electric conductor, with copper water content more than 99.9%. Lead zinc or gold plating on the surface of the grounding copper bar electric conductor not only reduces the contact resistance, but also improves the load flow of the bus cable.

　　七、不同的插入點配雙插頭插座設備

　　7、 Double plug and socket equipment for different insertion points

　　1.該千斤頂采用“”觸線結構，母線支頭既能滿足小電流的連接插入需要，又能滿足工業生產中大電流的連接插入需要。合理地?cái)[脫了傳統插入角易燒盡、損傷后不易就地修復的缺點。

　　1. The jack adopts the "zero distance" contact wire structure, and the bus support head can not only meet the connection and insertion needs of small current, but also meet the connection and insertion needs of large current in industrial production. It is reasonable to get rid of the shortcomings of the traditional insertion angle, which is easy to burn out and difficult to repair in place after damage.

　　2.如果連接箱的電源開關3 p,當電源開關,電氣設備將N, PE階段后杰克部分放置在電源開關,進入統一的箱電纜連接終端,進一步提高工作效率,還很多鋪張浪費,減少電纜客戶為客戶節省大量隱形的運營成本。

　　2. If the power switch 3P of the connection box is used, when the power switch is used, the electrical equipment will place the jack part in the power switch after the N, PE stage, and enter the unified box cable connection terminal, further improving the work efficiency, and reducing a lot of extravagance and waste, so as to save a lot of invisible operating costs for customers.

　　以上是電纜橋架制造商為大家介紹的相關內容，想要了解更多內容，歡迎訪問網站：http://www.xinheli88.com

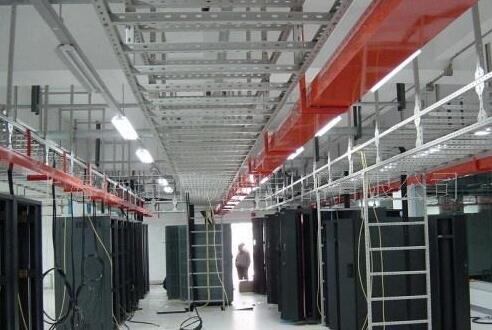

　　These are the relevant contents introduced by the cable tray manufacturer. For more information, please visit the website: http://www.xinheli88.com
